Hosetail to DIN Hygienic Elbow – 45° / 90°

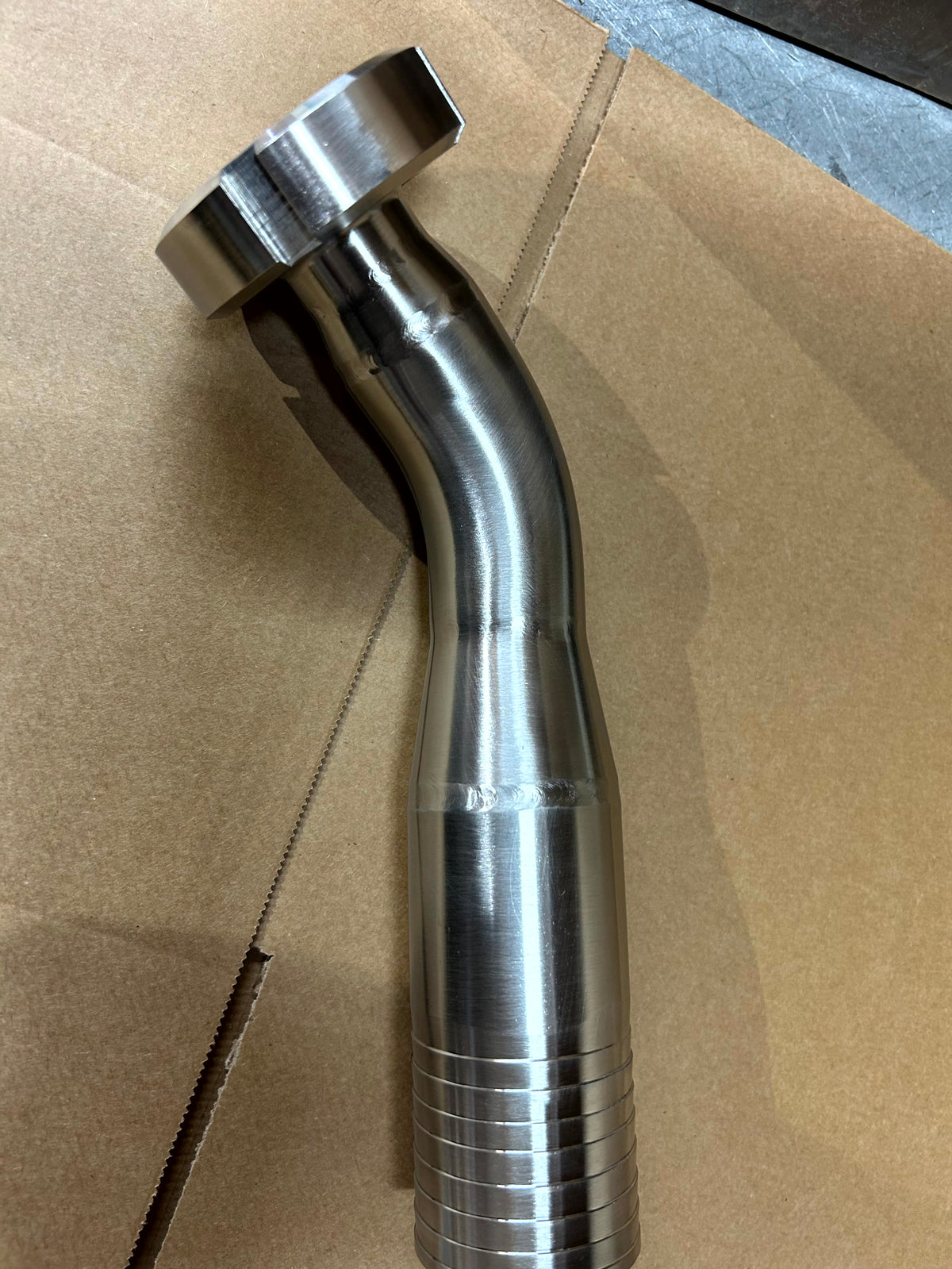

Polished stainless steel hygienic elbow with a weld-on hosetail at one end and a DIN connection at the other, available in 45° and 90° versions.

Options and construction

• Sizes: 1", 1.5", 2", 2.5", 3" and 4".
• The hosetail and bend use the same selected size.
• Select a hose with an internal diameter matching the nominal hosetail size.
• 316L stainless steel bend, hosetail and weld-on connection end.

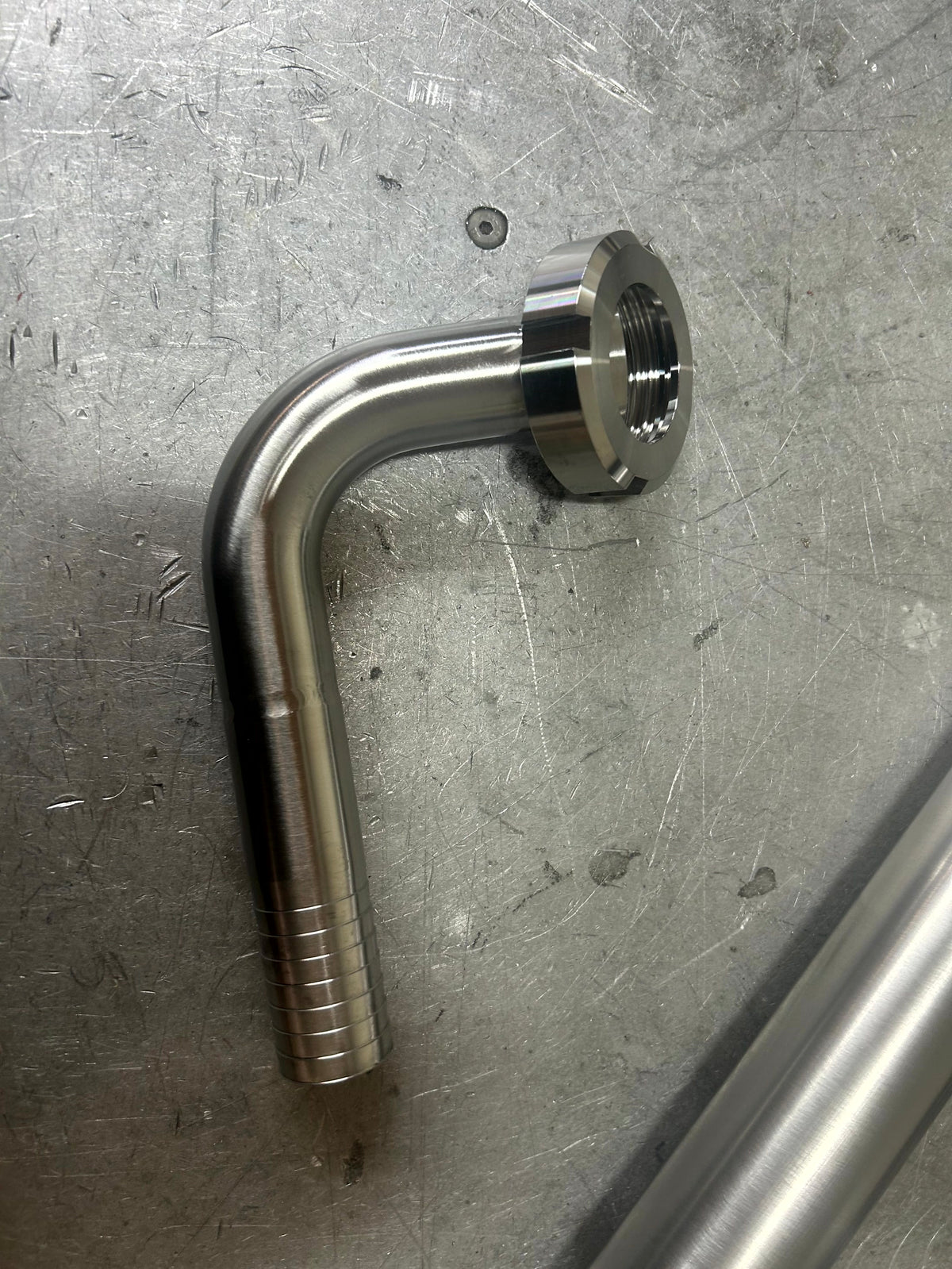

• Choose DIN Male or Female.

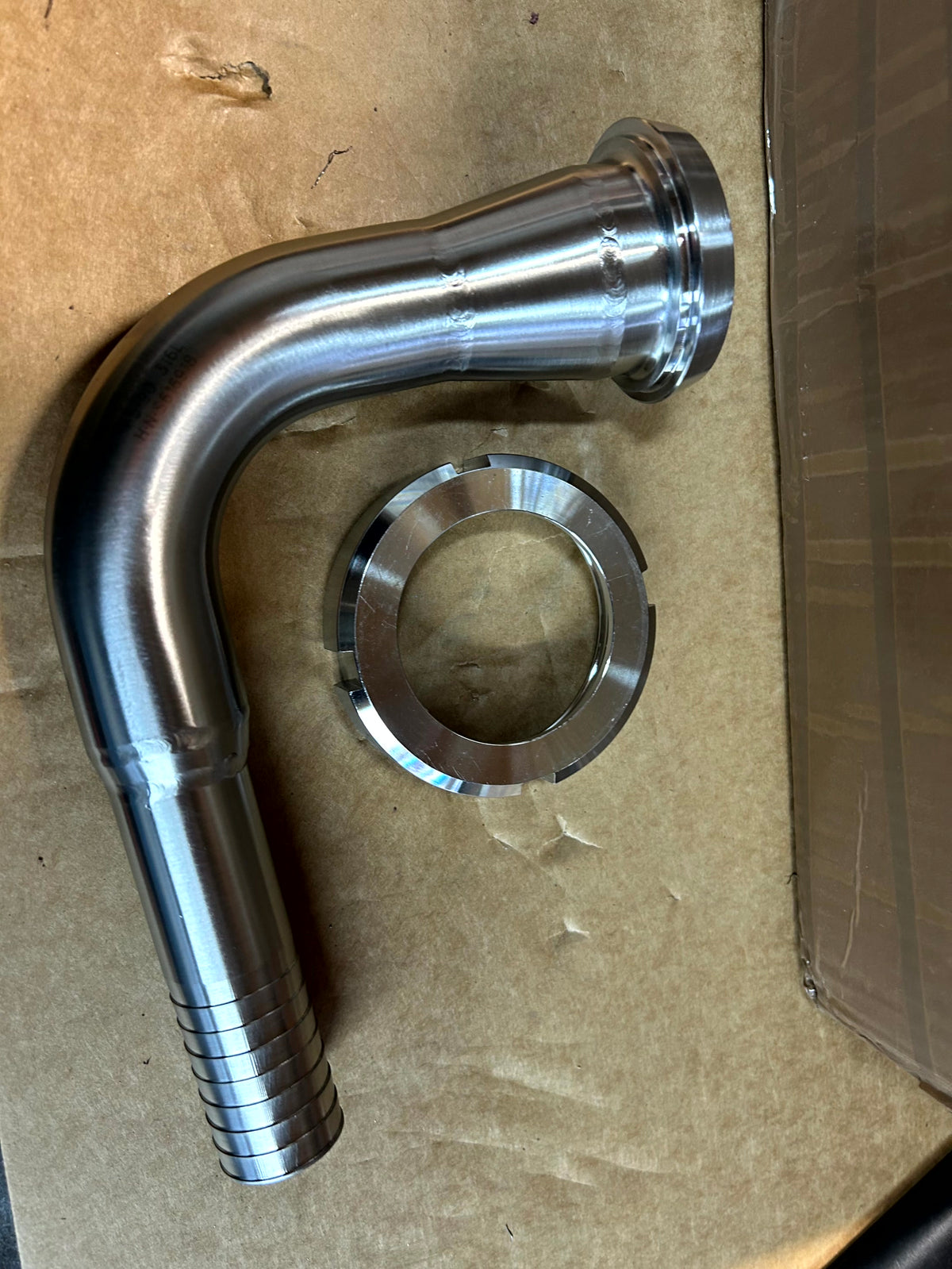

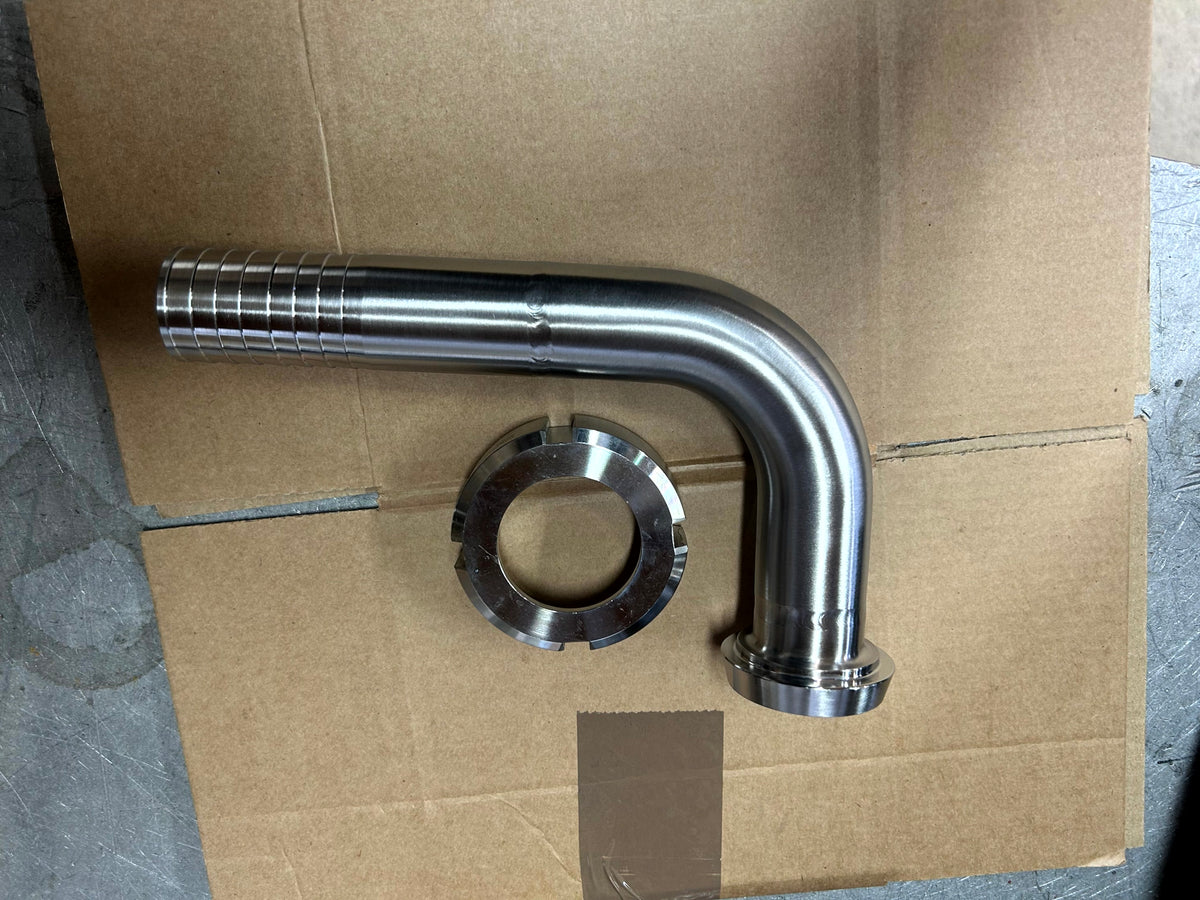

• Female connections include a 304 stainless steel nut and a 316L liner.

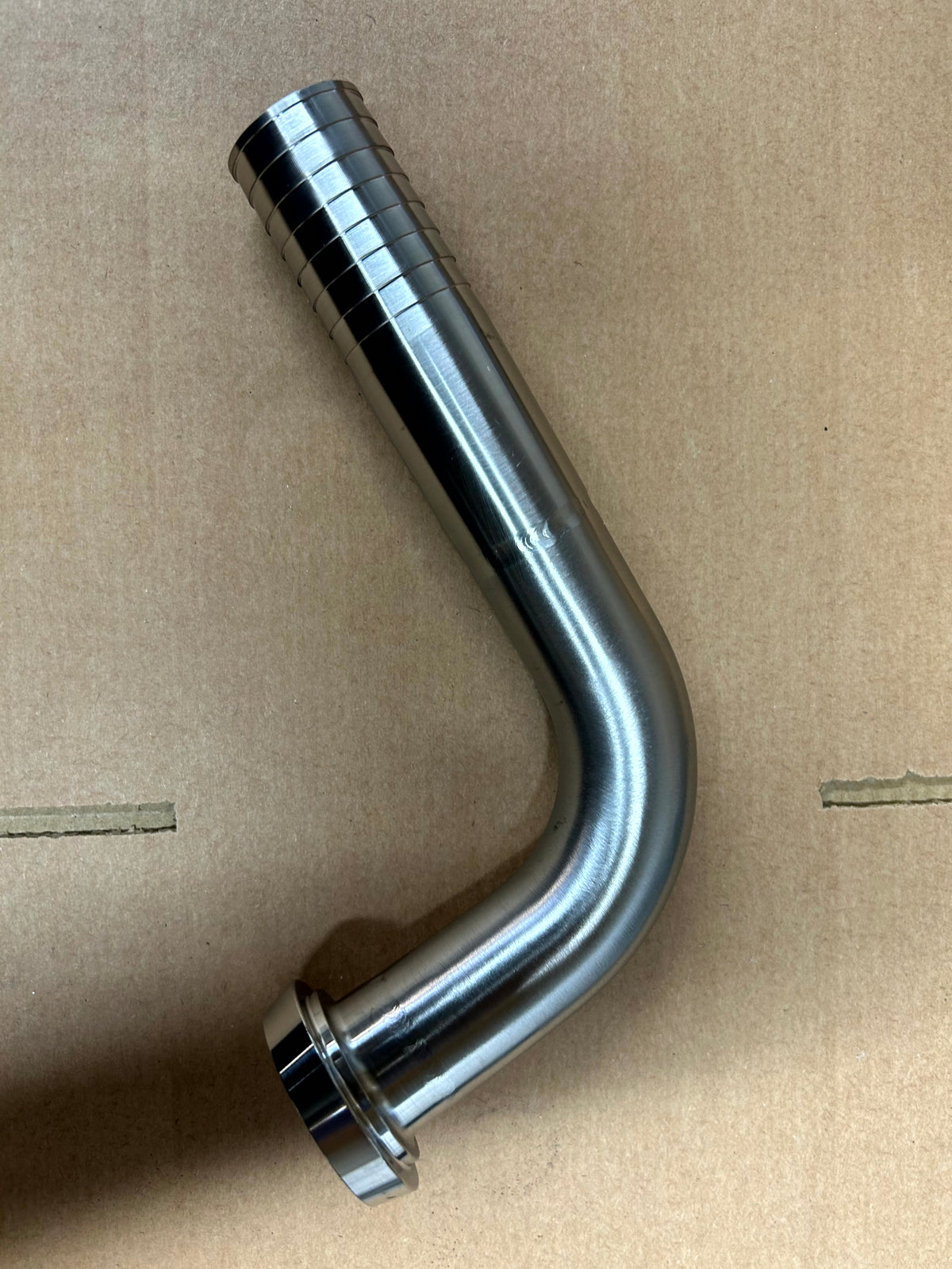

• Male connections include a blue EPDM joint ring.
• Hose and hose clips are not included.

DIN connections have imperial weld ends: 1" / DN25, 1.5" / DN40, 2" / DN50, 2.5" / DN65, 3" / DN80 and 4" / DN100.
