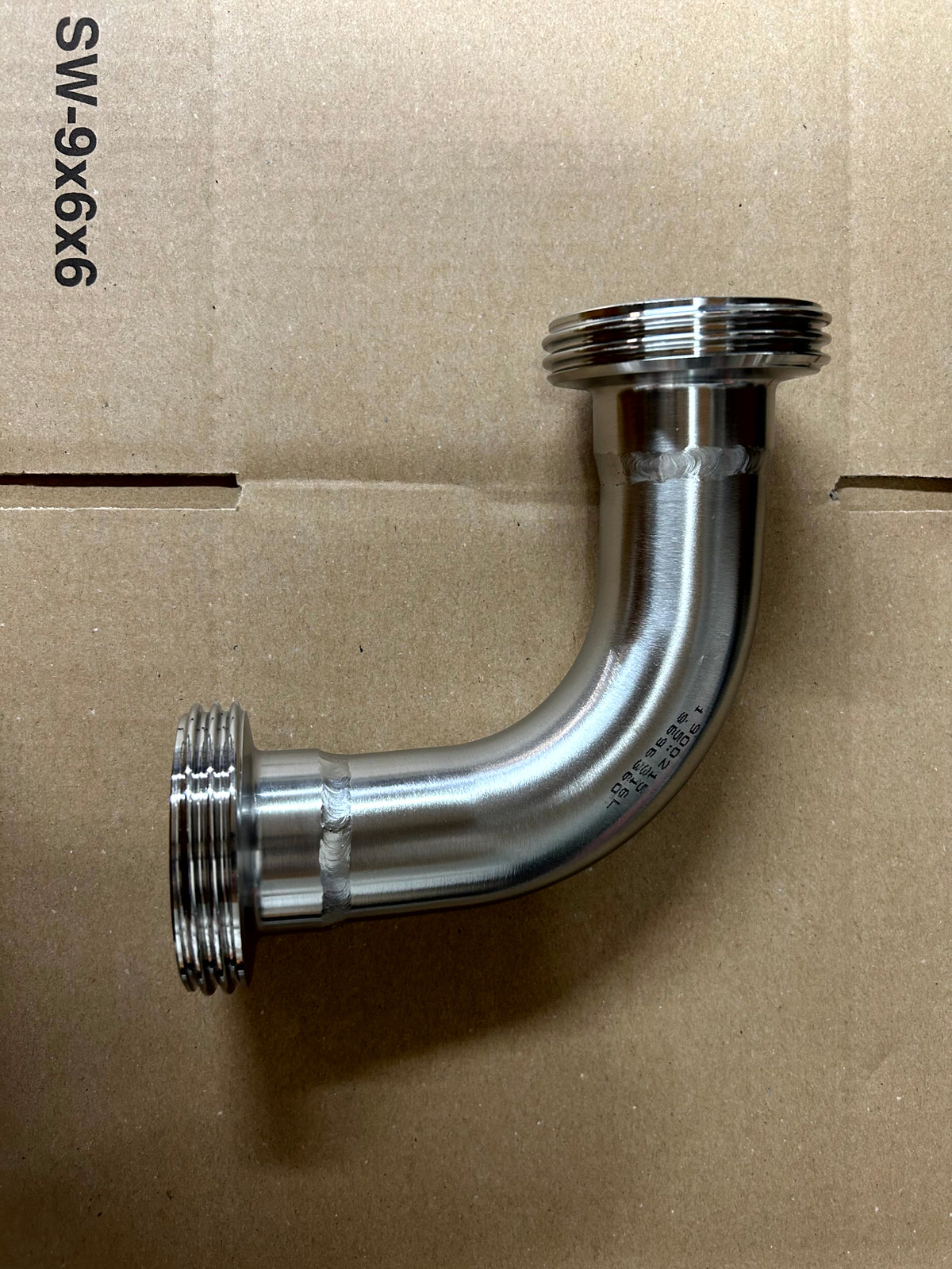

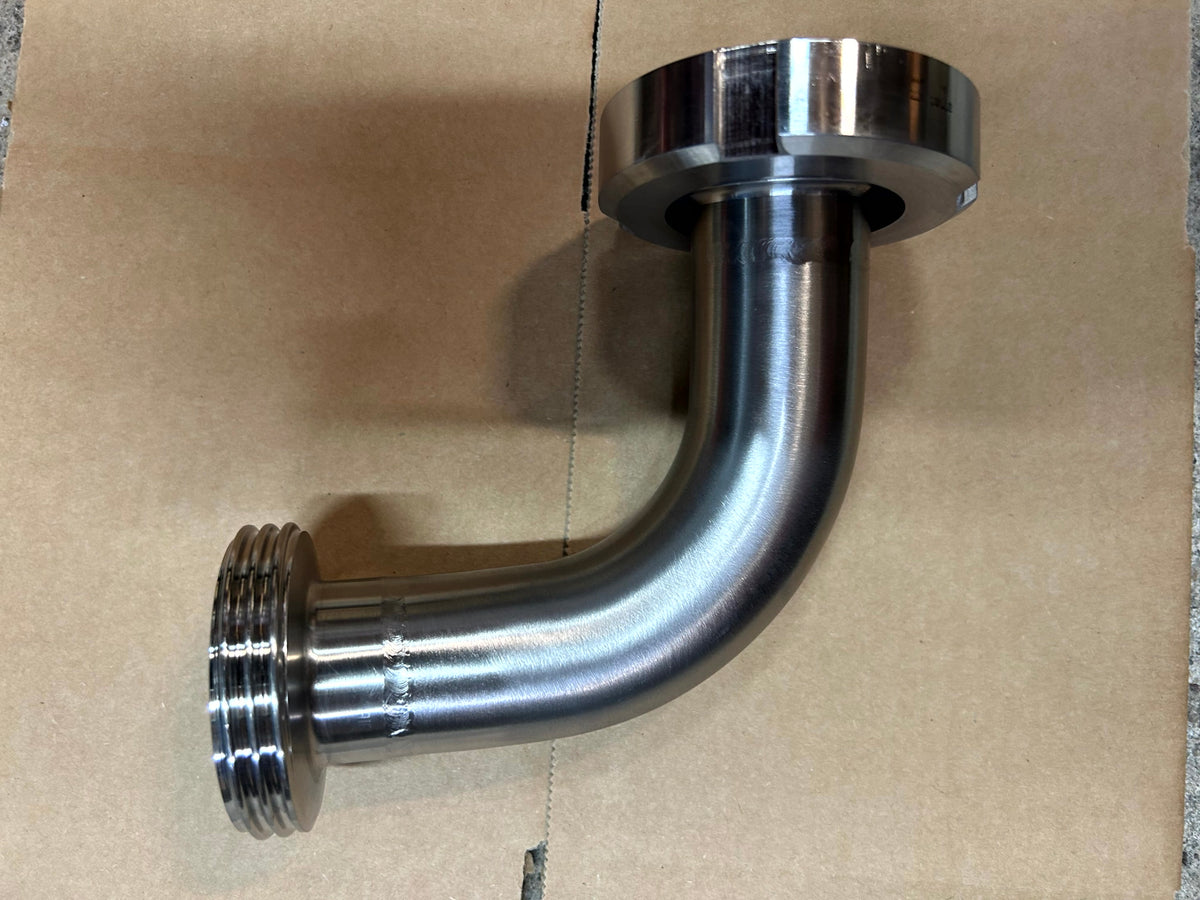

Polished stainless steel hygienic elbows with DIN connections, available in 45° and 90° versions. Select a matching tube size from 1" to 4" for both ends.
Options and construction
Tube sizes: 1", 1.5", 2", 2.5", 3" and 4".
Bend angle: 45° or 90°.
316L stainless steel bend and weld-on ends.
Choose Male or Female independently for Connection 1 and Connection 2.

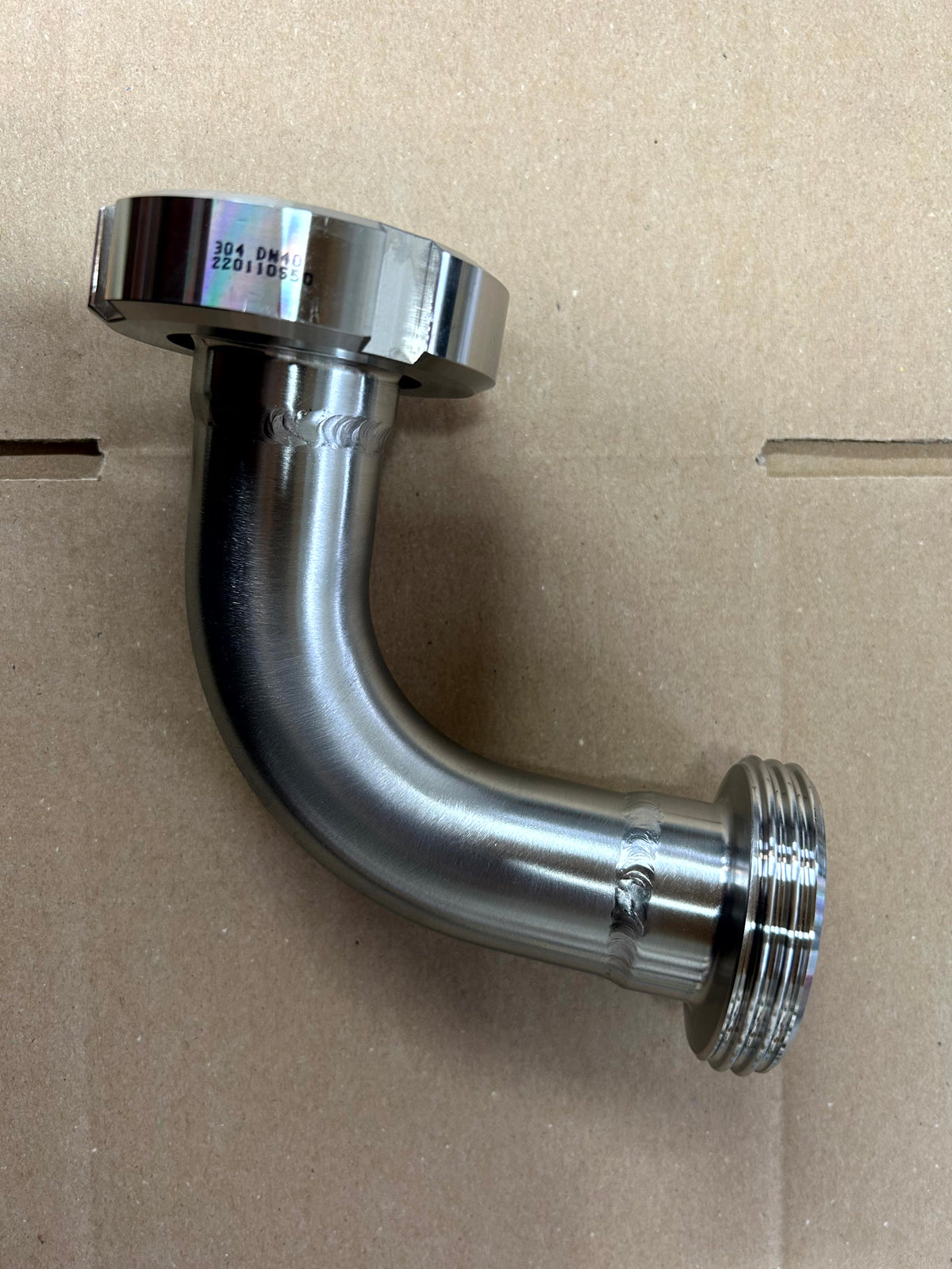

Female ends include a 304 stainless steel nut and a 316L liner.
Each Male end includes a blue EPDM joint ring.
DIN connections have imperial weld ends to suit the selected tube: DN25 / 1", DN40 / 1.5", DN50 / 2", DN65 / 2.5", DN80 / 3" and DN100 / 4".
Both ends are the same size. These are equal-size elbows, not reducing elbows.
