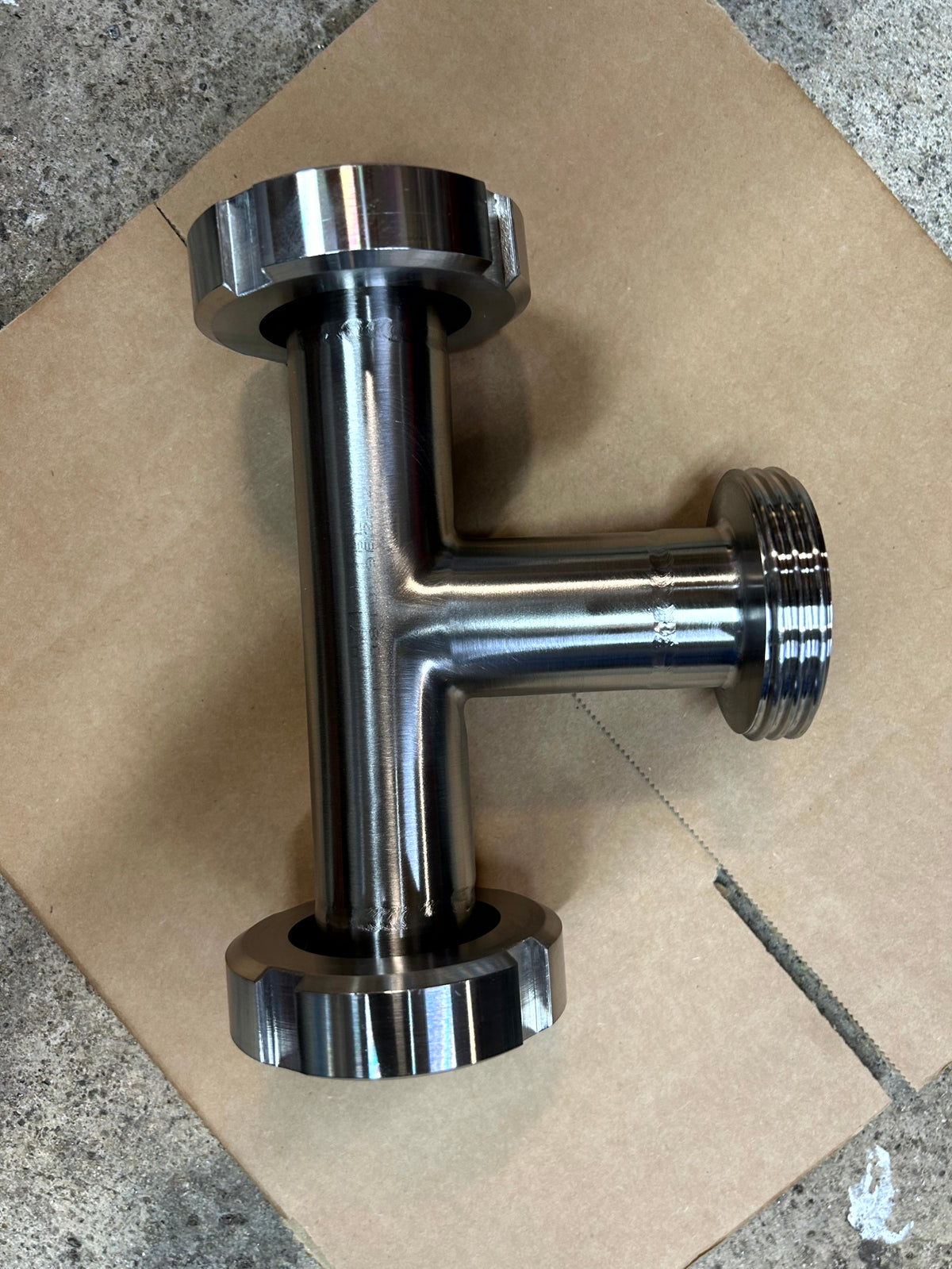

DIN Hygienic Normal Tee

Polished stainless steel normal tees with DIN connections for brewery, dairy and process pipework. All three ends have the same selected tube size.

Sizes

Available in 1", 1.5", 2", 2.5", 3" and 4".

Connections

Run connections are the two ends of the straight-through section. Choose Male - Male, Male - Female or Female - Female.

Branch connection is the side outlet. Choose Male or Female independently of the run. For example, Run connections: Female - Female and Branch connection: Male gives two Female run ends and a Male branch.

Each Female end includes a 304 stainless steel nut and a 316L liner. Each Male end includes a blue EPDM joint ring.

Polished 316-series stainless steel tee body with 316L weld-on ends.

DIN connections have imperial weld ends. DN25 = 1", DN40 = 1.5", DN50 = 2", DN65 = 2.5", DN80 = 3", DN100 = 4".

If you require a Pulled Tee, please contact us to discuss your requirements.
