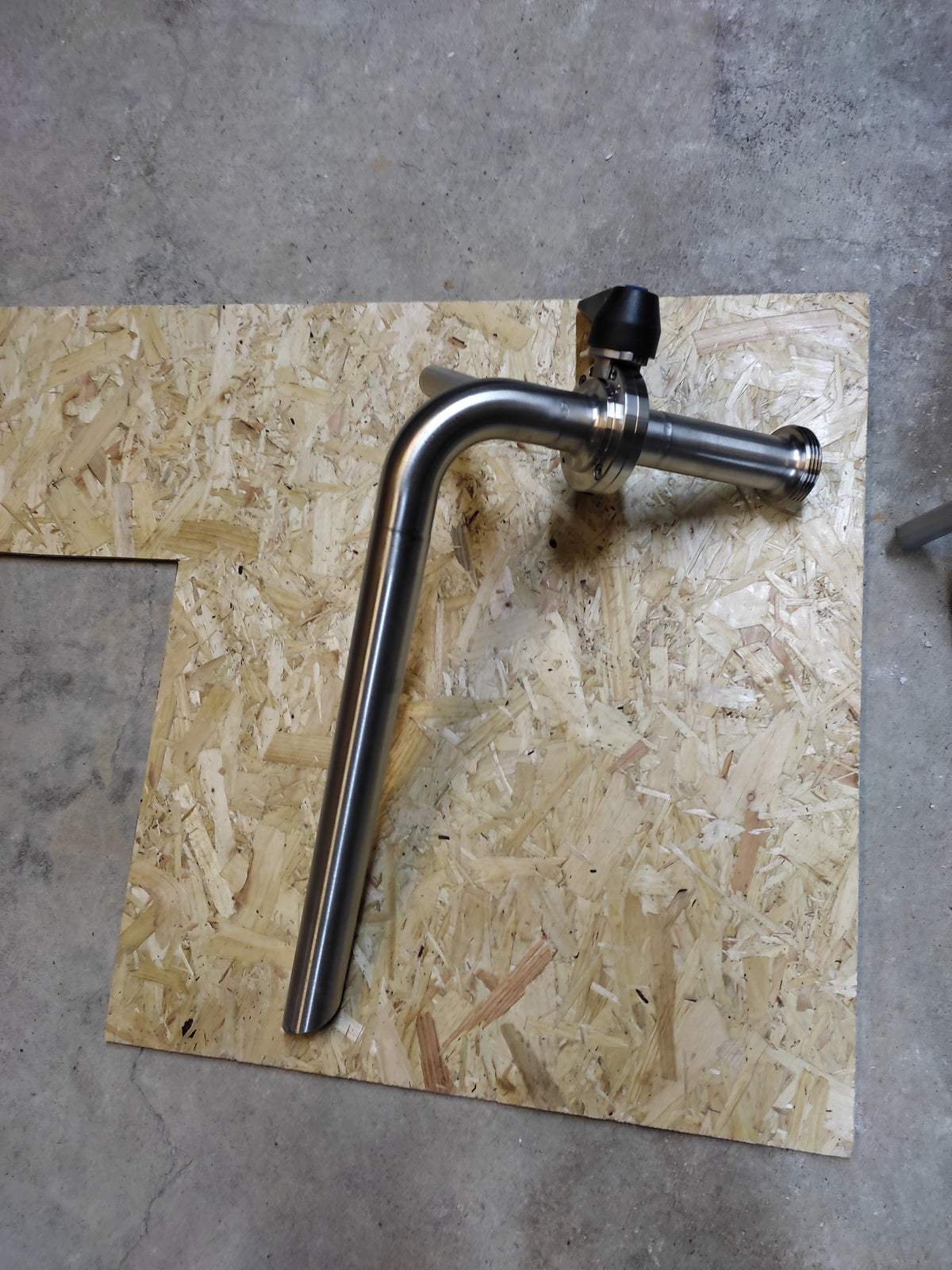

Designed for controlled cask filling, this stainless steel racking gun combines a manually operated butterfly valve with a 90° hygienic bend and a 400 mm filling tube.
The angled tube outlet helps maintain product flow and reduces the risk of the opening becoming obstructed when resting against the bottom of the cask. A removable 140 mm handle provides a convenient grip during use.
Specifications

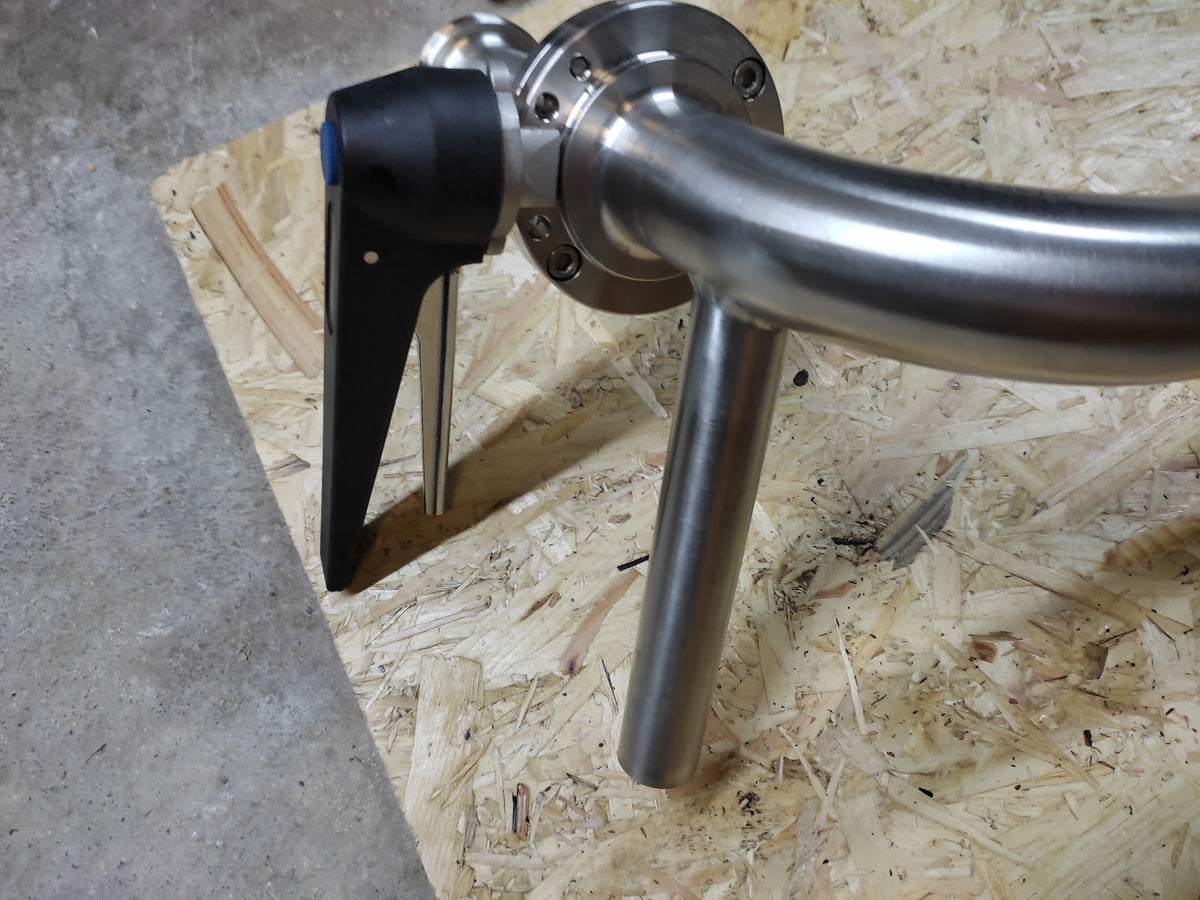

Manual weld-end butterfly valve with EPDM seal.
90° hygienic bend with a 400 mm straight filling tube.

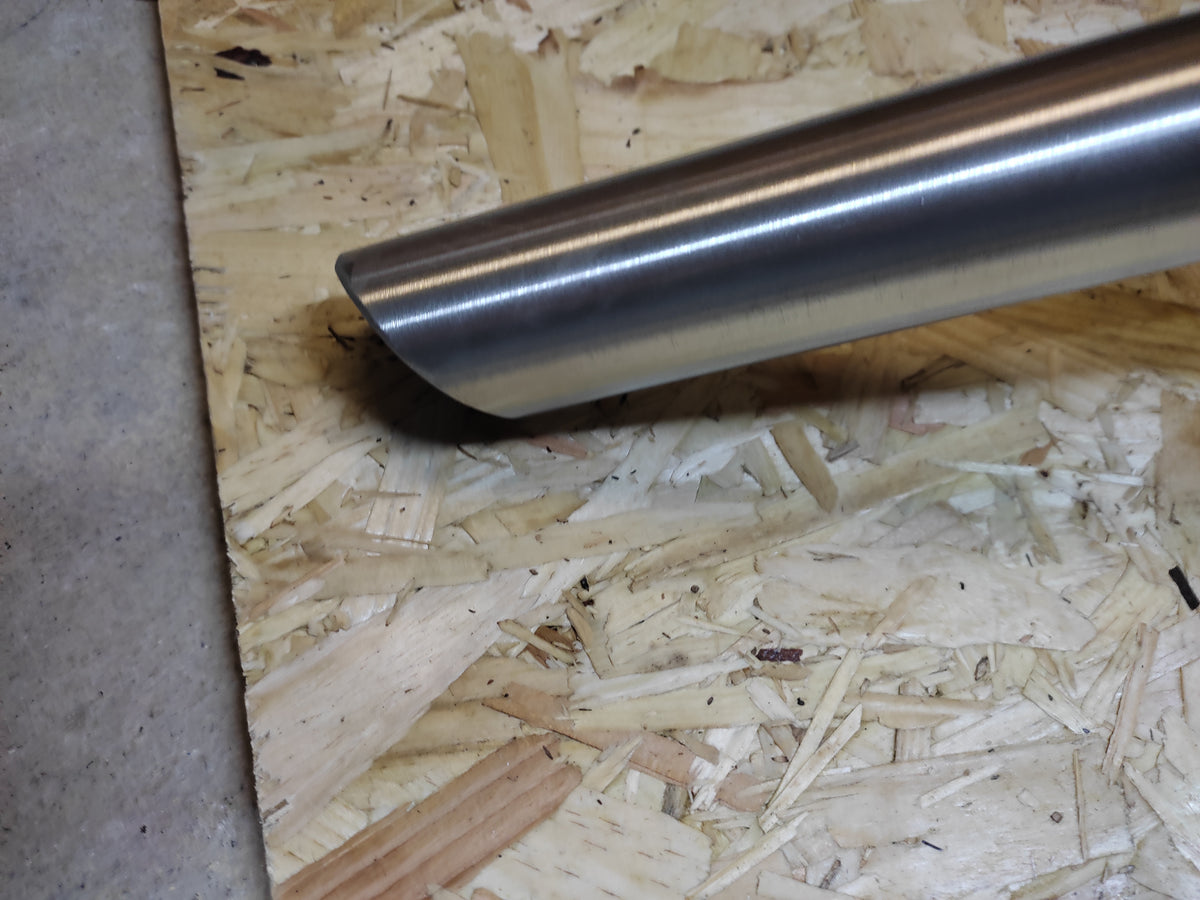

Angled outlet to help prevent flow restriction.
Removable handle: 140 mm long.
Connecting tube between the valve and inlet fitting: 50 mm.
The 400 mm dimension refers to the straight filling tube, not the overall length of the assembly.

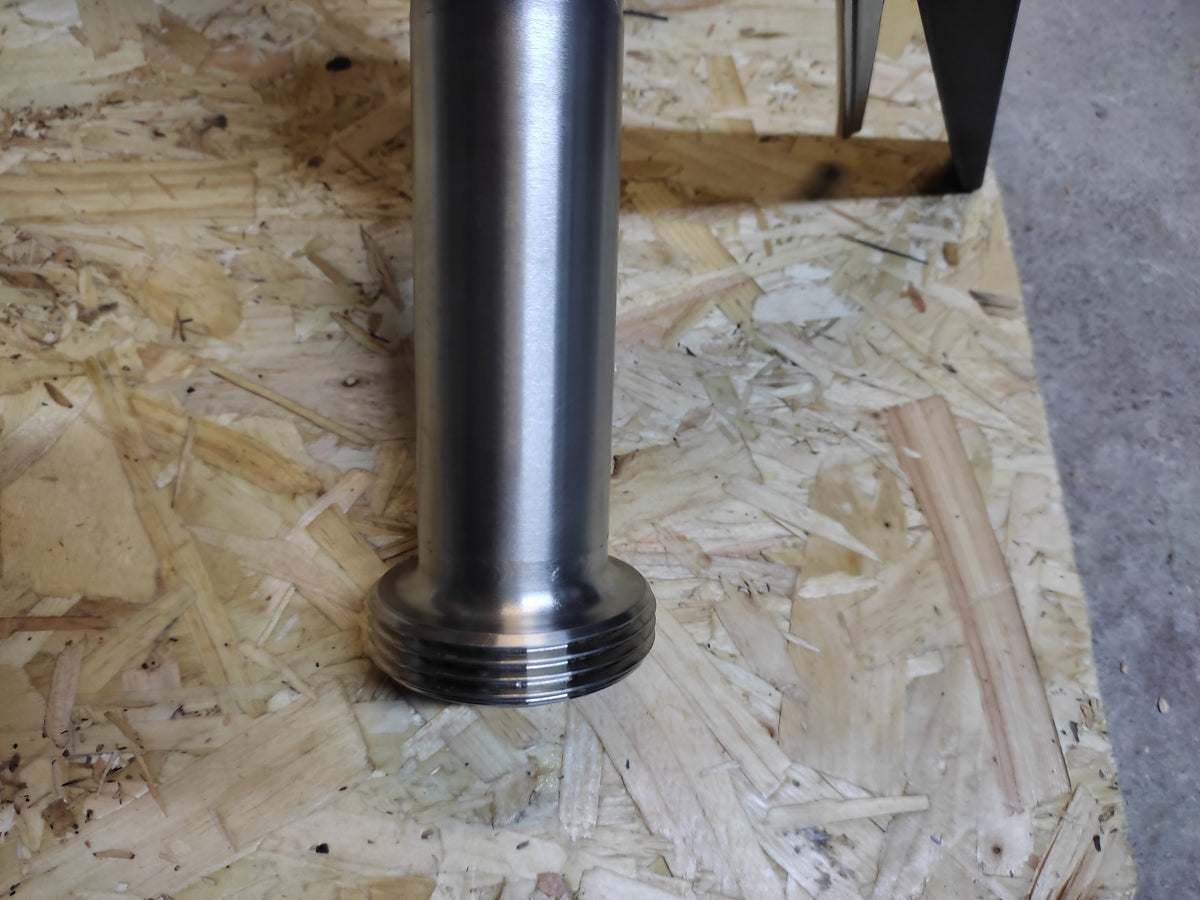

RJT connection options
Choose a 1" or 1.5" tube size with an RJT Male or Female inlet. Male connections include a nitrile joint ring; Female connections include the nut and liner.
